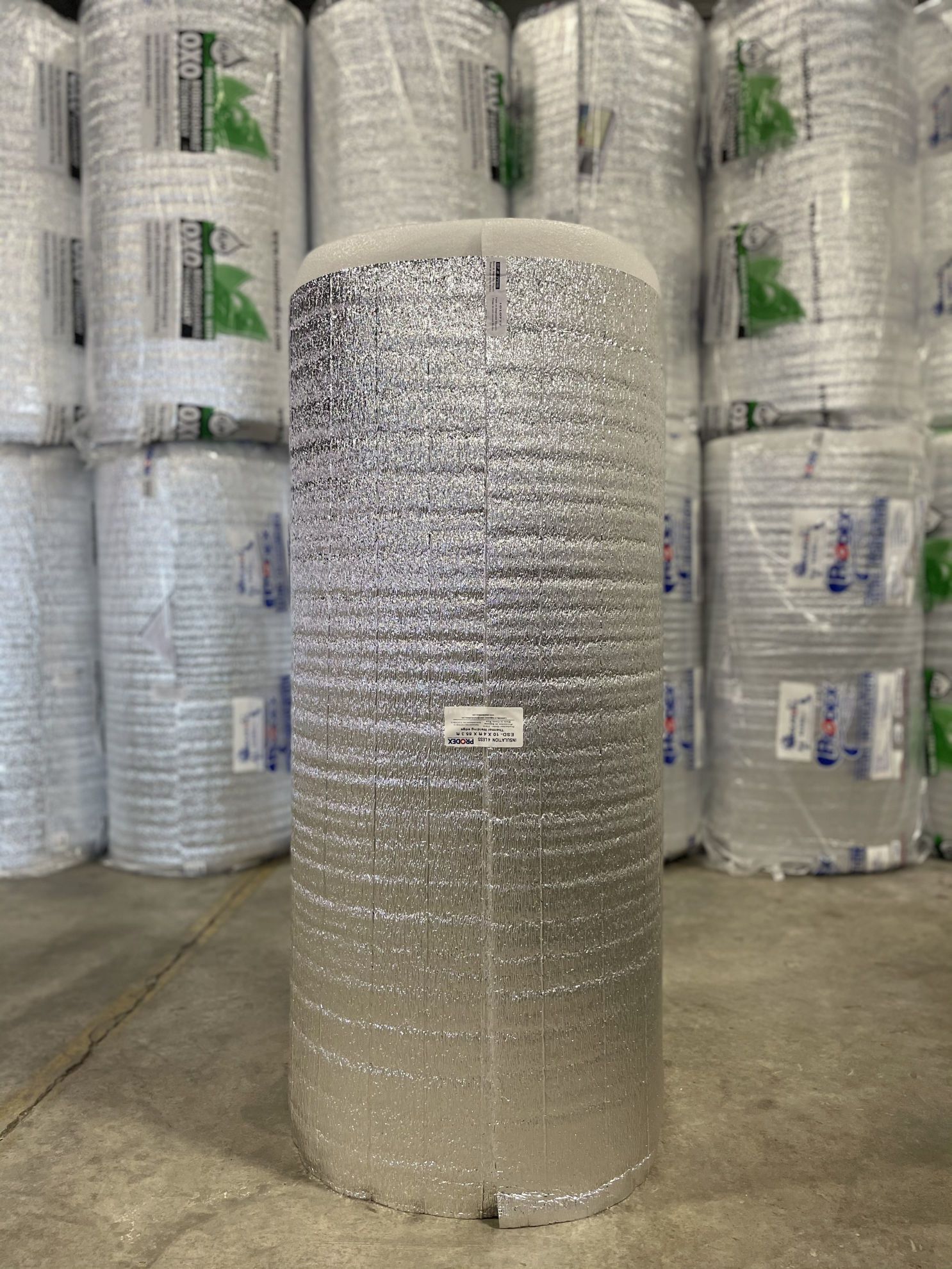

48 INCH Prodex Total 5M Plus 4 ft x 175 ft (700 sq ft)

$ 389.95 $ 489.95 You save 20.410%

FREE Shipping TODAY on 2 or more rolls. Texas deliveries click for details.

Scroll down to "Order Here / Get a Quote" box for DISCOUNT volume price


HIGHER R | STRONGER | SAFER


Reflective reinforced foil on each side of 5mm (0.2 inch) closed-cell polyethylene foam center.


R-value 17 - Improved Tearing Resistance - Flame Spread 0


Insulation + Radiant barrier + Vapor Barrier + Air Barrier All in one product!

One Ifsolution for Heat, Condensation, Cold and Airflow. Reflective reinforced foil on each side of 5mm (0.2 inch) closed-cell polyethylene foam center.
Ship dimensions: L: 48" W: 24" H: 24" Lbs: 26


Prodex Difference: R 17 unaffected by humidity : Prevents condensation : Prevents 97% of radiant heat transfer : Vapor barrier : Core sealed on both sides with flange : Elastic : Does not promote mold or mildew : Does not provide for nesting of rodents, bugs or birds : Seals around nails (no leak) : ICC-ES Recognized : Reflective reinforced foil on each side of 5mm (0.2 inch) closed-cell polyethylene foam center : Keeps its shape over time (doesn't collapse) : Rippled surface increases airflow : Green Product Certified : Over 5 billion square feet sold worldwide.


You get more than insulation when buying Prodex Total. You also get an air, radiant, and vapor barrier! Even if you have fiberglass insulation, you should still use Prodex Total to add r-value and keep moisture plus heat out of your fibers.


Credibility


Prodex adds an extra layer of credibly by submitting insulation rolls to the ASTM Rima International verification program. By having a third party verification, Prodex assures its clients that the insulation complies with industry standards, and is suitable for any construction system.


ICC-ES Recognition - An evaluation service that takes independent test data for a variety of products and analyses it against a Uniform Acceptance Criteria that is recognized internationally. Report available on request.


Insulation4Less and Prodex Total Insulation Reviews


Site Jabber Site Jabber is the leading destination for customer reviews of businesses. We display the Site Jabber page link because this review site requires the reviews to be submitted by customers.


Better Business Bureau (BBB) For over 100 years, BBB has set the standard for ethical business behavior. We're proud to maintain an "A to A+" rating. We've been Accredited since 2004.


Insulation4Less Reviews Featuring Prodex Total Insulation Learn why our reviews are so good.


Video Reviews


Understand What You're Buying


Reflective Insulation - Measuring its R-value vs. fiberglass insulation


Protect Your R-value

Prodex Total can be used as standalone or complement to fiberglass insulation.


  • R-value Protection
    Fiberglass insulation's R-value comes from the air pockets between the fibers, not the fibers themselves. When moisture fills these air pockets, the R-value decreases.

  • How Prodex Total Helps
    Installing Prodex Total (insulation + radiant barrier + vapor barrier + air barrier + condensation eliminator) between the fiberglass and metal sheeting helps keep the fiberglass dry, preserving the fiberglass R-value over time. Prodex over fiberglass in metal building Learn how Prodex Total stops condensation in metal buildings.


Insulation4Less is the only location in the USA and Canada where you can buy Prodex Total Insulation. Beware of sellers using Prodex product images, descriptions and test results to market other products.


If the application requires code approval, provide the technical sheet to your code official prior to ordering.




Click to enlarge

Nominal thickness 5mm (+ or - 0.5mm) 0.2 inch



Click to enlarge

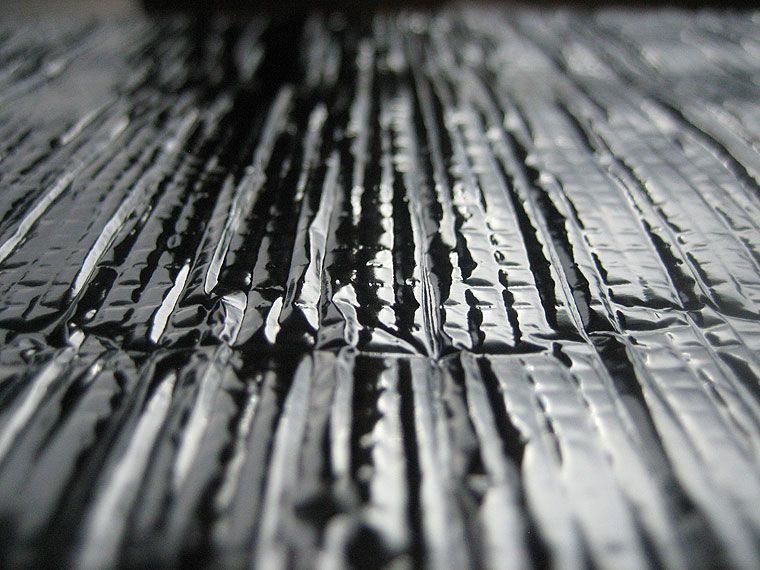

Creases in foil creates more airflow to enhance performance

Insulation Layers

Reflective reinforced foil

Polyethylene backing

Closed-cell polyethylene foam

Polyethylene backing

Reflective reinforced foil


Ask a question about this product?

HIGHER R | STRONGER | SAFER


Reflective reinforced foil on each side of 5mm (0.2 inch) closed-cell polyethylene foam center.


R-value 17 - Improved Tearing Resistance - Flame Spread 0


Insulation + Radiant barrier + Vapor Barrier + Air Barrier All in one product!

One Ifsolution for Heat, Condensation, Cold and Airflow. Reflective reinforced foil on each side of 5mm (0.2 inch) closed-cell polyethylene foam center.
Ship dimensions: L: 48" W: 24" H: 24" Lbs: 27


Prodex Difference: R 17 unaffected by humidity : Prevents condensation : Prevents 97% of radiant heat transfer : Vapor barrier : Core sealed on both sides with flange : Elastic : Does not promote mold or mildew : Does not provide for nesting of rodents, bugs or birds : Seals around nails (no leak) : ICC-ES Recognized : Reflective reinforced foil on each side of 5mm (0.2 inch) closed-cell polyethylene foam center : Keeps its shape over time (doesn't collapse) : Rippled surface increases airflow : Green Product Certified : Over 5 billion square feet sold worldwide.


Prodex Total 5M Plus
R-value 17 (*A: One layer, heat flow down)

R-value 25 (*B Two layers, heat flow down)



Technical Brochure

How R-values are measured







CharacteristicsValueRegulation
Nominal Thickness0.20" |  5 mm
Flame Spread Index0ASTM E 84-10
Smoke Developed Index5ASTM E 84-10
Fungi ResistanceNo growthASTM C 1338
Tensile Strength at Break (MD)17.27 Lbf/inch

ASTM D-638

Water Vapor Permeance 0.011 Perms (Impermeable)ASTM E 96-05
Temperature and Humidity Resistance: No corrosion, no delamination, no loss of metalization - ASTM C-1258-08

Cell Structure - Closed

Approval questions should be posed to your local code official. Questions?

Resistance to Growth of FUNGI

Aspergillus niger

Aspergillus avus

Aspergillus versicolor

Penicillium funiculosum

Chaetomium globosum

ASTM C 1338

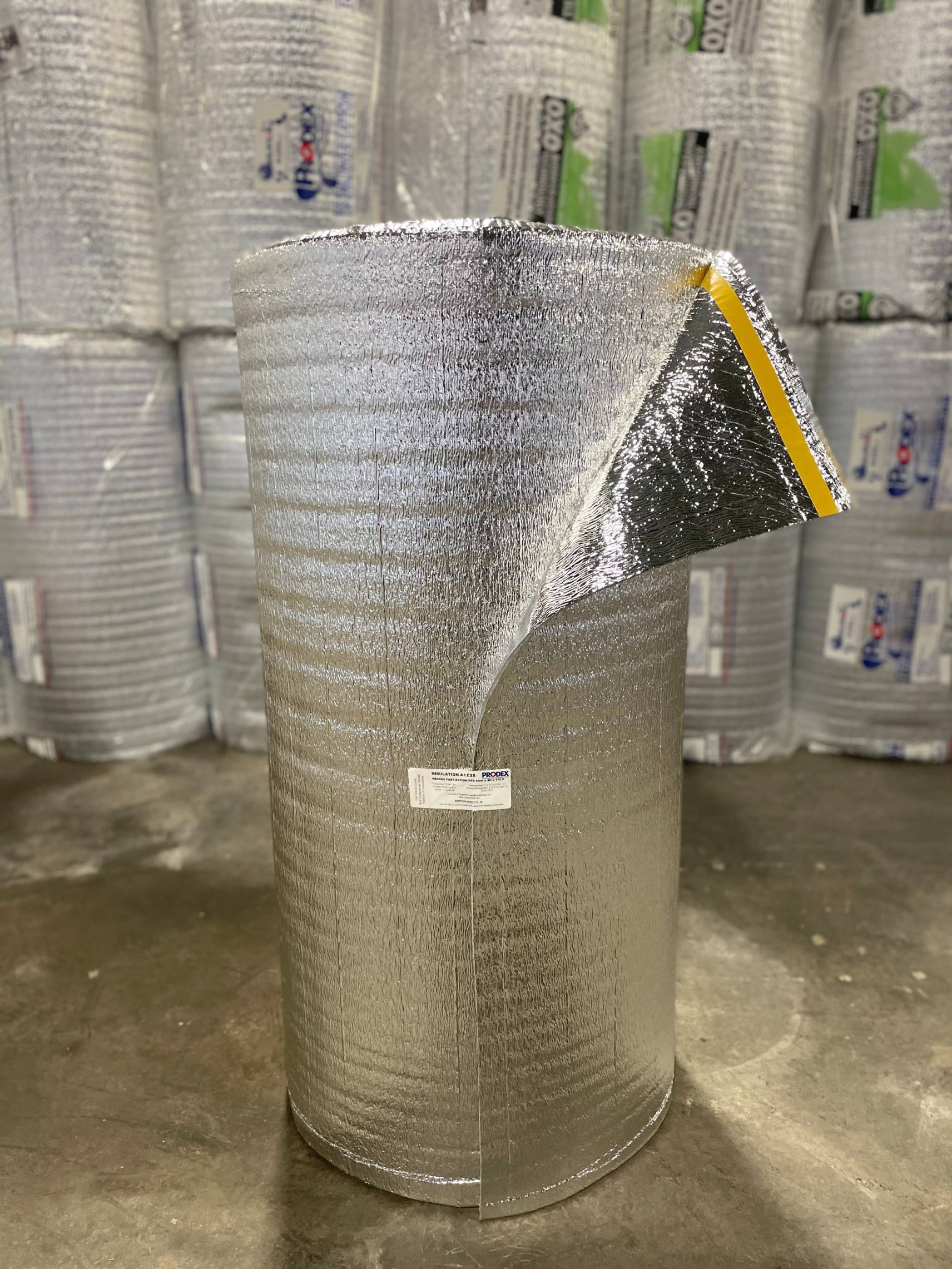

Prodex Fast Action: One 4 ft x 175 ft (700 sq ft) roll with convenient staple tabs and adhesive on rolls. Prodex Fast Action is identical to Prodex 48 Inch with the exception of having adhesive running 175 feet on one side of roll.

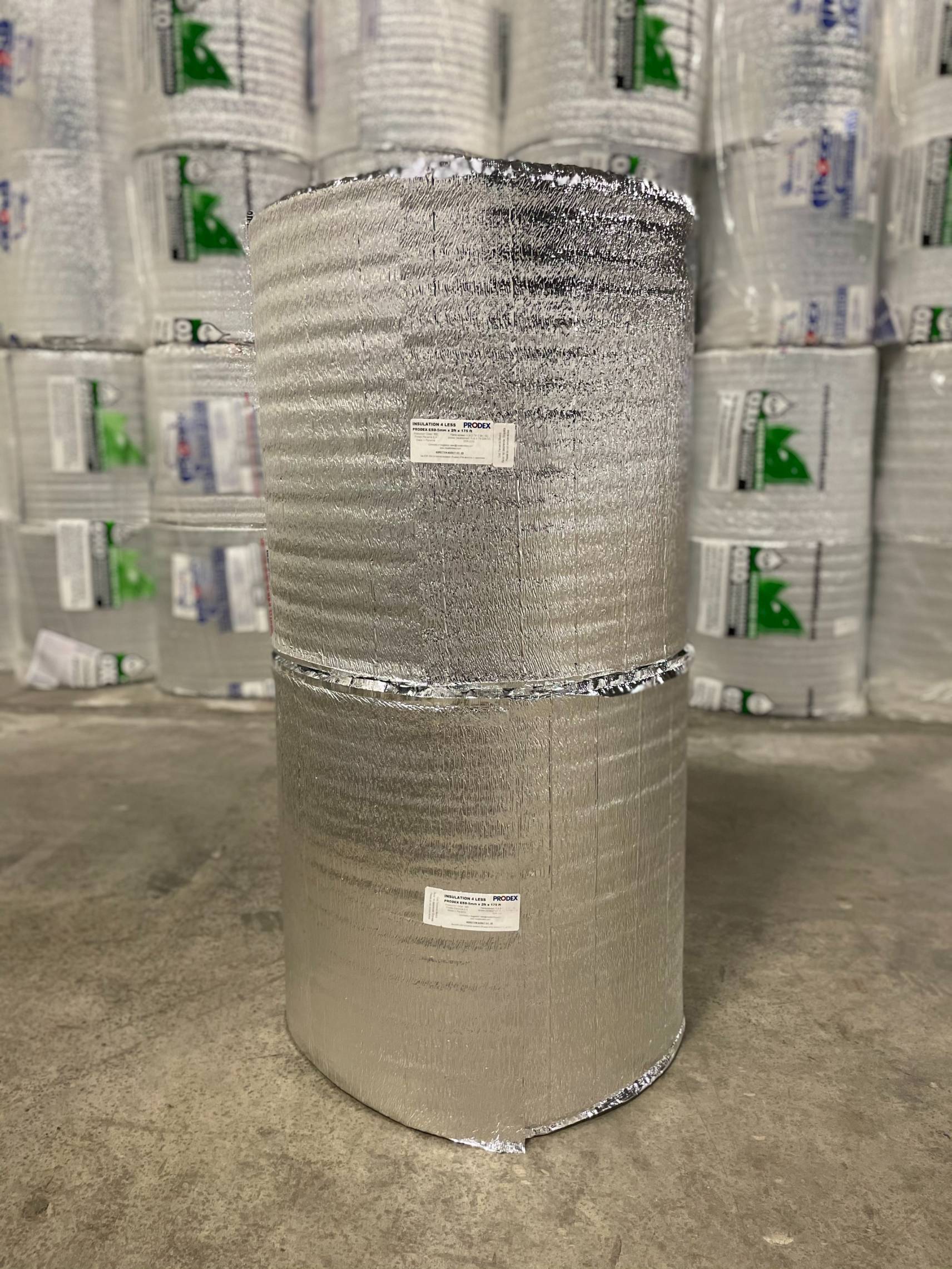

Prodex Total 24 Inch: Set of (2) two 24 inch x 175 ft rolls (700 sq ft total) packaged in one bag. Convenient staple tabs. Nominal width designed for 24 inch on center studs.
.

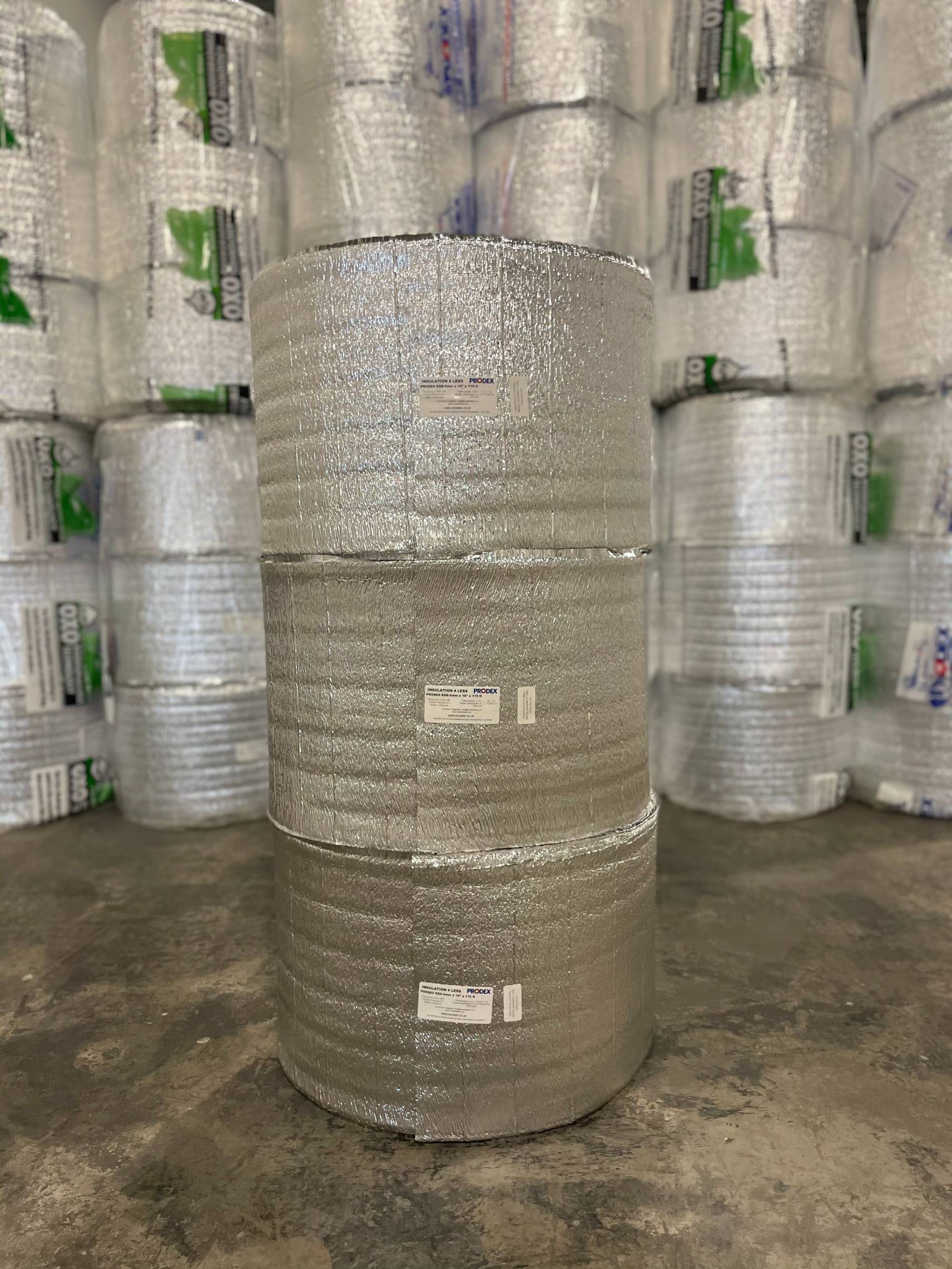

Prodex Total 16 Inch: Set of (3) three 16 inch x 175 ft rolls (700 sq ft total) packaged in one bag. Convenient staple tabs. Nominal width designed for 16 inch on center studs.

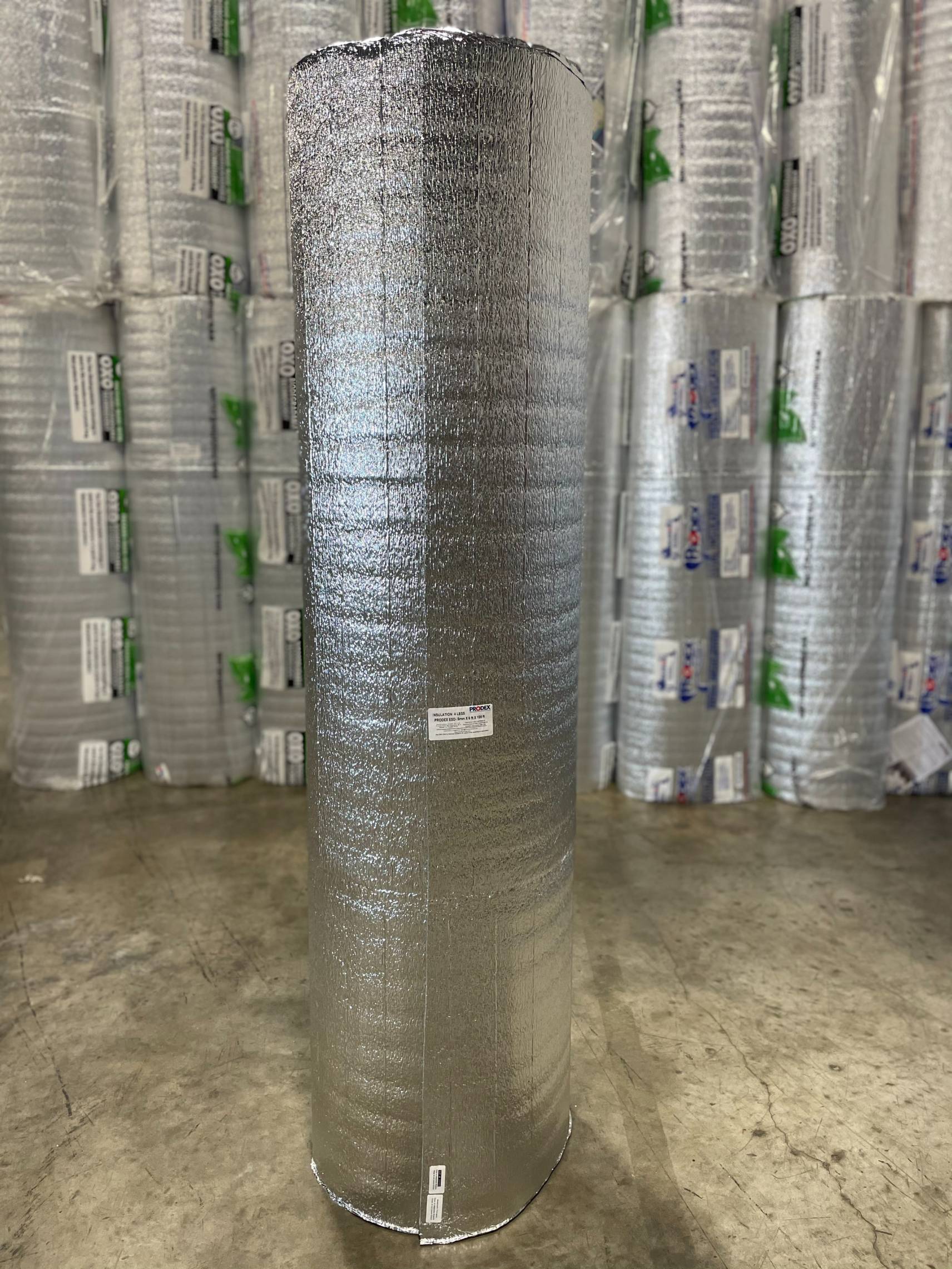

Prodex 72 Inch: One 6 ft x 100 ft (600 sq. ft.) roll with convenient staple tabs.

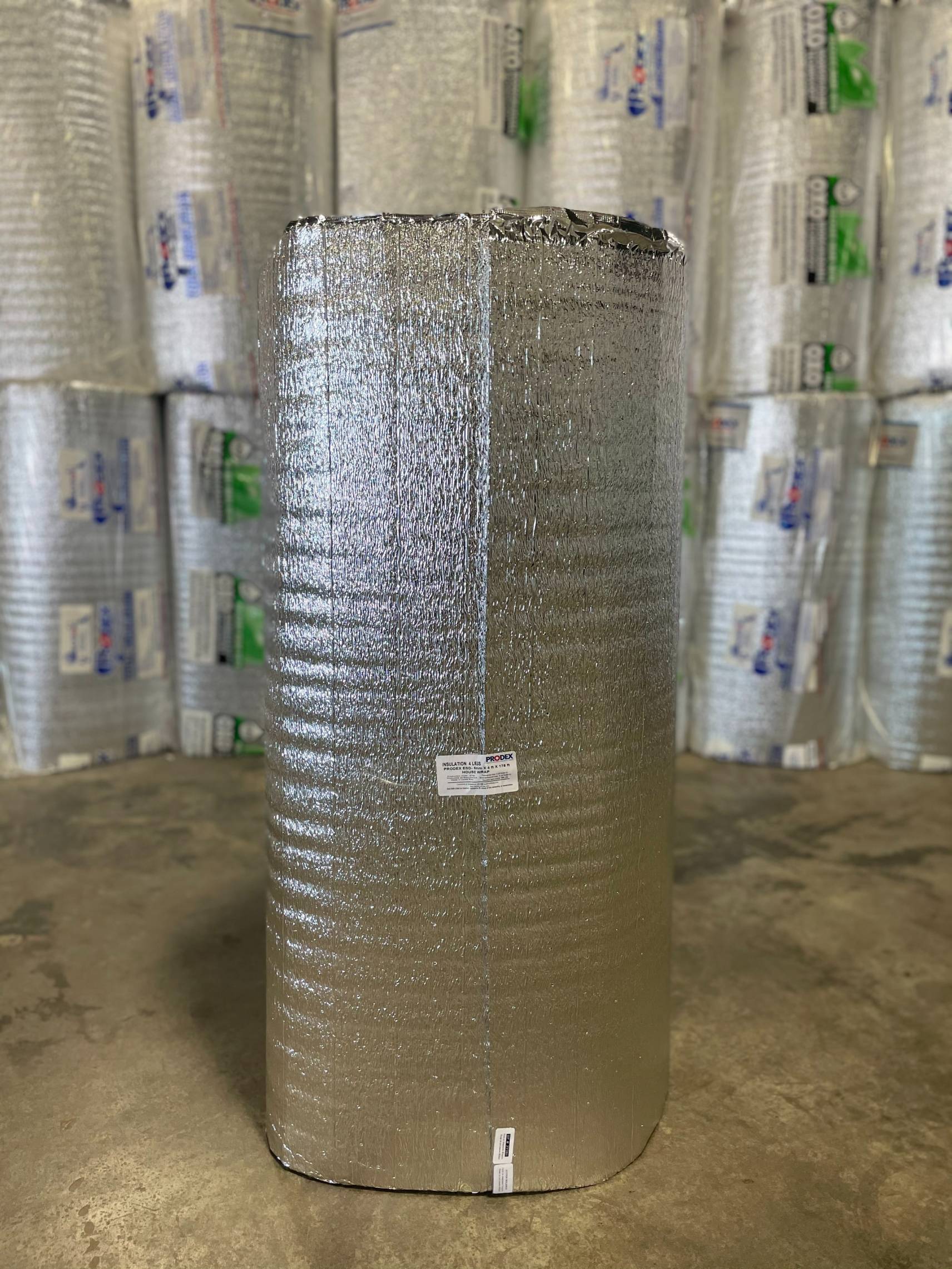

Prodex Perforated: 4 ft x 175 ft (700 sq. ft.) roll with convenient staple tabs.

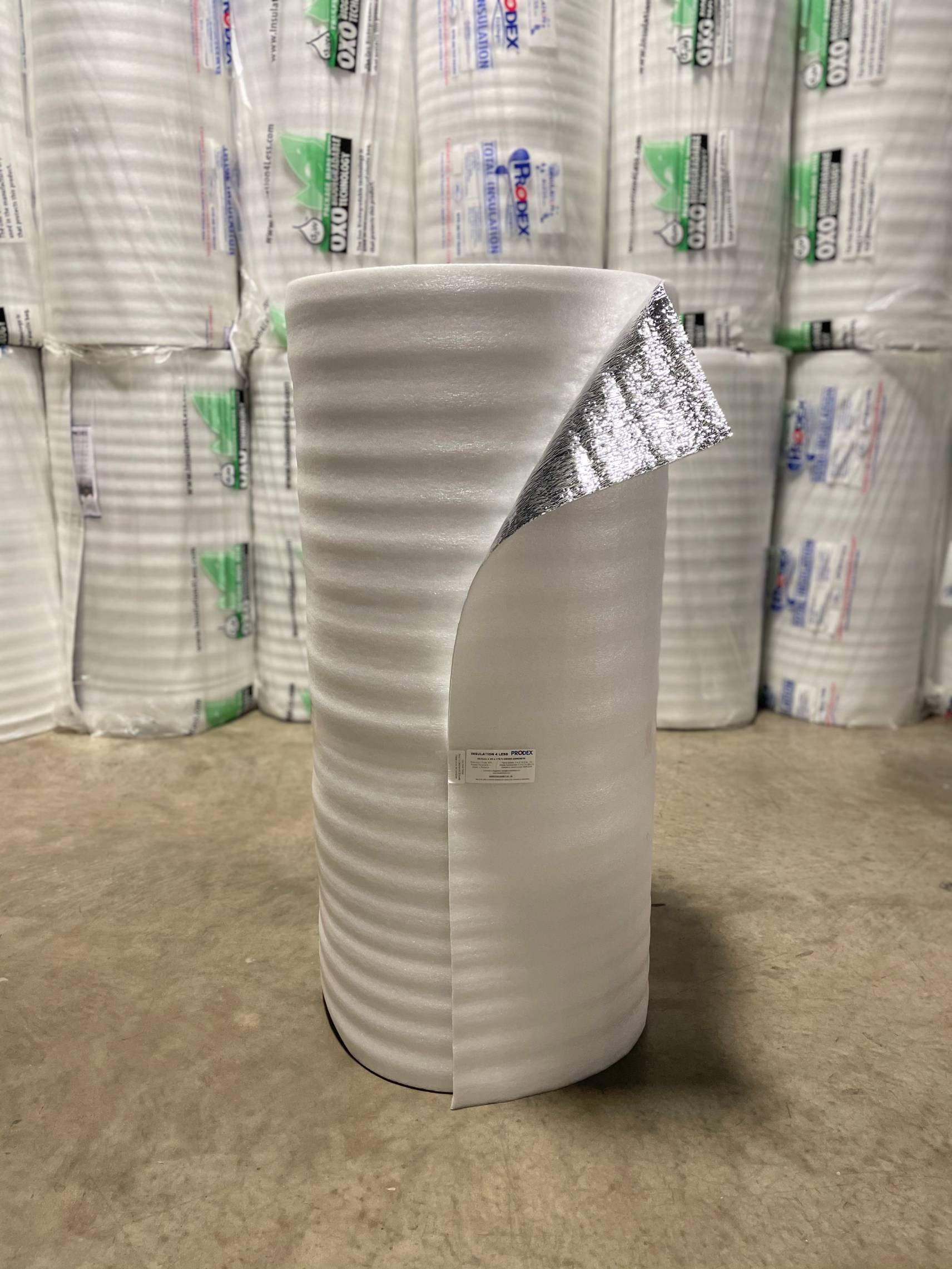

Prodex Under Concrete Insulation: 4 ft. x 175 ft. (700 sq. ft.) roll with convenient flange tabs for overlapping. Perfect for driveways and basements. Reflective aluminum foil attached to 5mm (13/64 inch) closed-cell polyethylene foam.

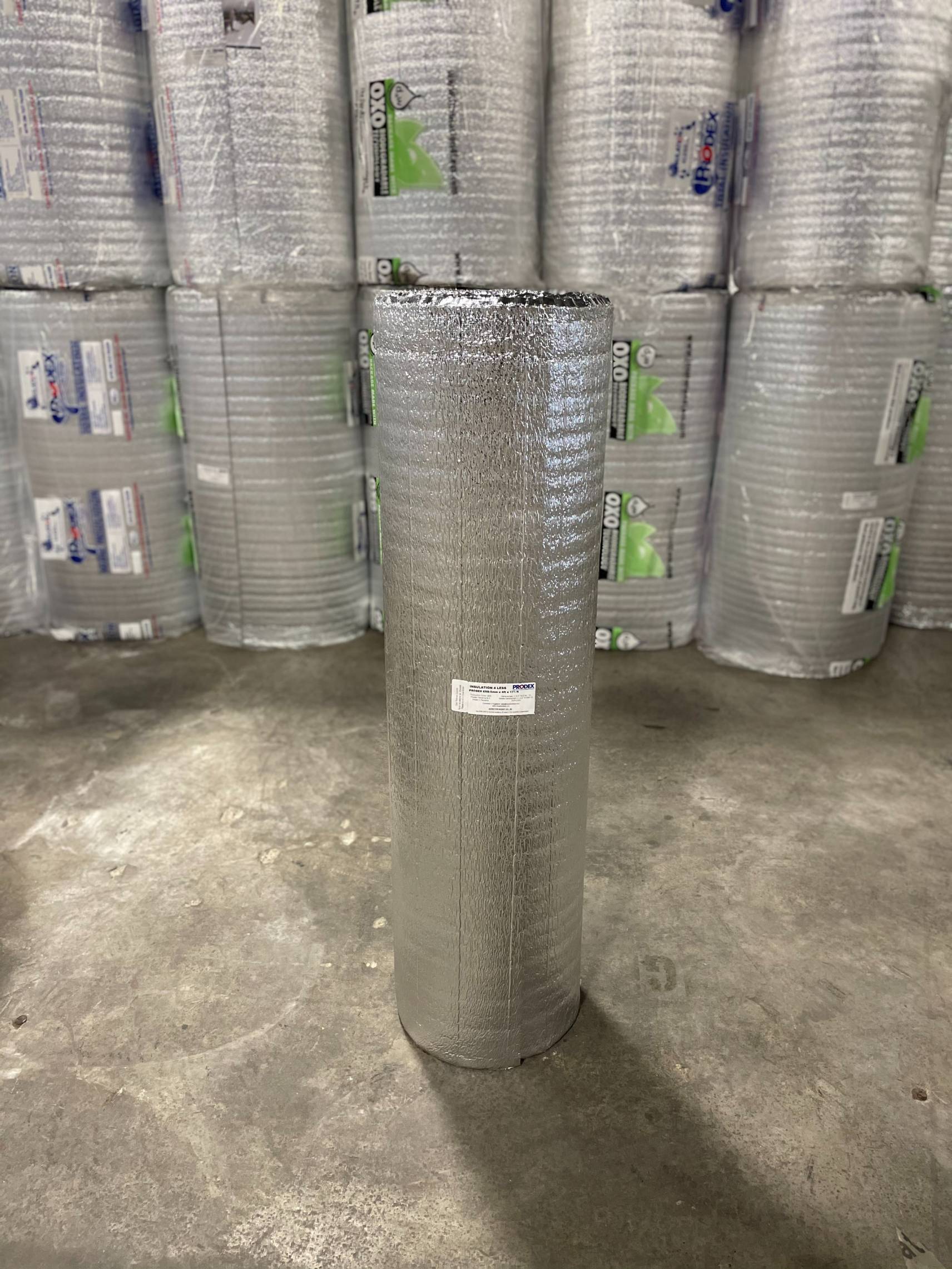

Prodex 4 ft x 50 ft (200 sq ft)

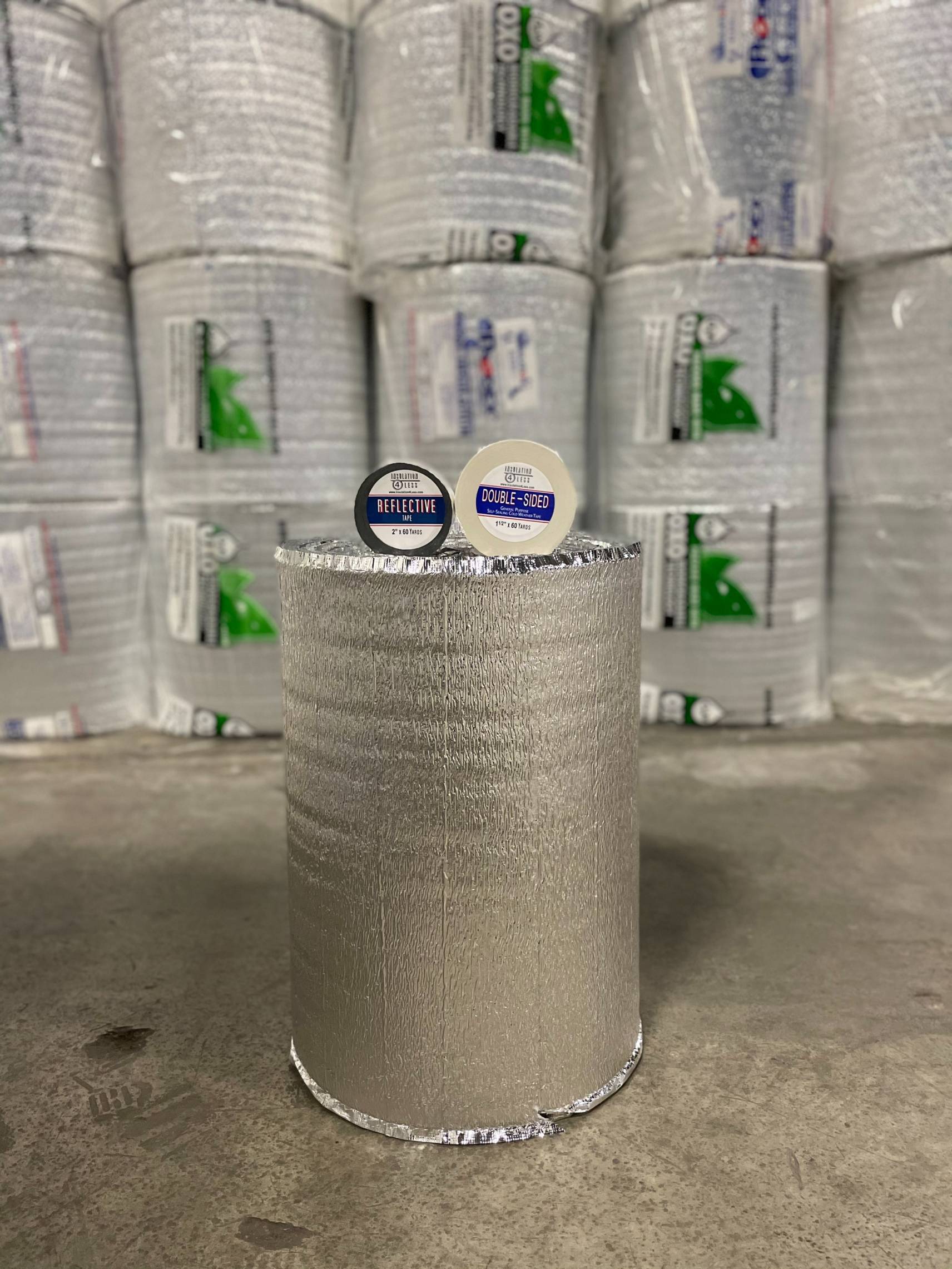

Prodex Garage Door Insulation kit: One - 24 Inch x 87 ft (174 sq. ft.) roll of Prodex Total Insulation + One roll of double sided adhesive tape (1-1/2 Inch x 60 yards) + One roll of reflective tape (2 Inch x 60 yards).

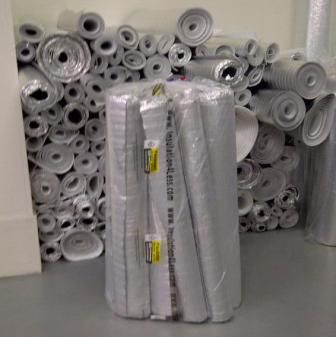

Prodex Assorted Cut Pieces: Approximately 525 to 650 square feet of assorted cut lengths of 4 foot wide (48 Inch) Prodex Total Insulation pieces. The lengths of the pieces typically range from 6 ft to 24 ft.
Prodex Total 10M: One 4 ft x 85.3 roll (342 sq. ft.) 10mm (0.4") - Twice as thick as regular Prodex, Increased R, More longitudinal strength + improved tearing resistance, Reduced condensation

Products reviews

Top review
My Pole Barn

December 8th, 2020
I have built a 42 X 74 X14 pole barn. I decided to use Insulation 4 less for the side walls as I am going to finish off the walls. I live in northwest Ohio and it gets cold here. I have installed the 5M insulation as per the instructions. The temperature has been in the low 30' this December. I keep the heat set at 45 degrees when I'm not working out there. Evenings I go out to check the heat consistency with the use of an Infrared Camera. All of the walls are a constant reading. I have thermostats all around the barn so I can evaluate the consistency of my Radiant Tube heating coming from the Ceiling. All thermostats read 50 degrees which is warmer than my Heating Units setting of 45 degrees. It has to do with the reflectiveness of the 5M insulation I guessing as to why the barn is warmer than the main setting. Very impressed with this.
JERRY P.

Top review
Great Product and Fast Delivery!

December 7th, 2019
I was skeptical at first but I must say I'm pleased with the product and delivery time. I ordered the 24 inch and the 48 inch. It was flexible and installed easily in my crawlspace. I put the 24 inch in between my studs and the 48 inch below. Previously, I had fiberglass and a lot of mold. I'm sure that wasn't very healthy for me. I remember ordering on a Monday and was surprised to see them on my porch a couple days later.
Jordan S.

Top review
A/C Relief

July 22nd, 2019
I doubled the size of my shop. It is now 3200 square feet. I added a 5 ton A/C system. The walls were insulated but the open ceiling was not. The new unit would not keep up with the load. I forgot to mention that the shop has a metal roof. I purchased Prodex insulation online and had a contractor install it on the underside of the rafters. The A/C went from not being able to keep up to being able to keep the shop whatever temperature I like.
Michael S.
