availability : 41 in stock

Estimated shipping date: Same Day for orders by 2:00 PM C.T.

4 ft x 50 ft FAST ACTION Prodex Total 5M Plus (200 sq ft )

$ 199.95 $ 239.95 You save 16.670%

FREE Shipping TODAY on 2 or more rolls

HI, AK and Canada excluded.


4 x 50 FAST ACTION : 4 ft x 50 ft (200 sq ft) Prodex Total 5M Plus

HIGHER R | STRONGER | SAFER

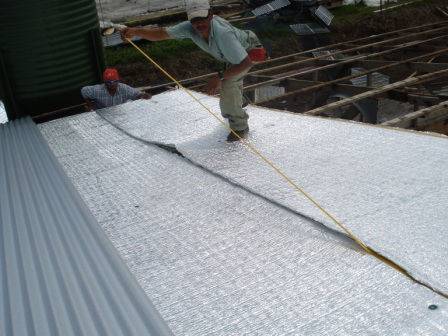

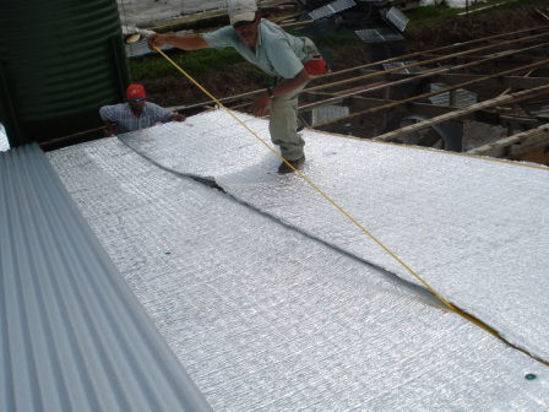

Prodex Fast Action is identical to Prodex 48 Inch with the exception of having adhesive running 175 ft. on one side of roll. The adhesive is for sealing the seams. No need to order reflective tape to seal seams. It saves time and money. Roofers report up to 50% savings in installation time.


R-value 17 - Improved Tearing Resistance - Flame Spread 0

Insulation + Radiant barrier + Vapor Barrier + Air Barrier All in one product!


One solution for Heat, Condensation, Cold and Airflow. Reflective reinforced foil on each side of 5mm (0.2 inch) closed-cell polyethylene foam center.
Ship dimensions: L: 48" W: 12" H: 12" Lbs: 9



Prodex Difference: R 17 unaffected by humidity : Prevents condensation : Prevents 97% of radiant heat transfer : Vapor barrier : Core sealed on both sides with flange : Elastic : Does not promote mold or mildew : Does not provide for nesting of rodents, bugs or birds : Seals around nails (no leak) : ICC-ES Recognized : Reflective reinforced foil on each side of 5mm (0.2 inch) closed-cell polyethylene foam center : Keeps its shape over time (doesn't collapse) : Rippled surface increases airflow : Green Product Certified : Over 5 billion square feet sold worldwide.


Prodex adds an extra layer of credibly by submitting insulation rolls to the ASTM Rima International verification program. By having a third party verification, Prodex assures its clients that the insulation complies with industry standards, and is suitable for any construction system.


Beware of pitchmen for fiberglass and other mass insulation products. Ask them: "Doesn't the R-value you post come from the air pocket in the fibers? Isn't your testing done in an environment with no moisture? Why don't you show the parameters of your testing? Unlike mass insulation products, we provide the parameters of the testing. Every R-value on website is displayed as a link. Every R-value link goes to the parameters of the testing.


You get more than insulation when buying Prodex Total. You also get an air, radiant, and vapor barrier! Even if you have fiberglass insulation, you should still use Prodex Total to add r-value and keep moisture plus heat out of your fibers.


Understand what you're buying...


Ultimately, it's not our opinion or that of the competition that counts - See:


Video Reviews


Independent Reviews at Site Jabber. Site Jabber is the leading destination for customer reviews of businesses.


BBB report and reviews. For over 100 years, BBB has set the standard for ethical business behavior. We're proud to maintain an "A to A+" rating. We've been accredited since 2004. The BBB rating takes into account a company's size in its relation to complaints.


Insulation4Less is the only location in the USA and Canada where you can buy Prodex Total Insulation. Beware of sellers using Prodex product images, descriptions and test results to market other products.




Click to enlarge

Nominal thickness 5mm (+ or - 0.5mm) 13/64 inch



Click to enlarge

Creases in foil creates more airflow to enhance performance

Insulation Layers

Reflective reinforced foil

Polyethylene backing

Closed-cell polyethylene foam

Polyethylene backing

Reflective reinforced foil




4 x 50 FAST ACTION - Prodex Total 5M Plus Insulation - Combines the benefits of insulation with vapor, air and radiant barrier protection. That means you'll have a cool, dry structure in the summer and a warm, dry structure in the winter

Prodex works great in hot and cold climates.

In addition to being the best  metal building insulation, it is also a vital component in a complete house insulation system.

Fiberglass used as metal building or pole barn insulation results in condensation, loss of R-value, and heat gain.

Reflective Insulation - The R-values of reflective and mass insulation are based on the same fundamental equation -- The ability to stop heat transfer.

Double Bubble Insulation - What is the difference between radiant Barriers, bubble insulation and Prodex Total?

Questions? Click FAQ

Prodex Total 5M Plus
R-value 17 (*A: One layer, heat flow down)

R-value 25 (*B Two layers, heat flow down)



Technical Brochure

How R-values are measured

CharacteristicsValueRegulation
Nominal Thickness0.20" |  5 mm
Flame Spread Index0ASTM E 84-10
Smoke Developed Index5ASTM E 84-10
Fungi ResistanceNo growthASTM C 1338
Tensile Strength at Break (MD)17.27 Lbf/inch

ASTM D-638

Water Vapor Permeance 0.011 Perms (Impermeable)ASTM E 96-05
Temperature and Humidity Resistance: No corrosion, no delamination, no loss of metalization - ASTM C-1258-08

Cell Structure - Closed

Approval questions should be posed to your local code official. Questions?




Resistance to Growth of FUNGI

Aspergillus niger

Aspergillus avus

Aspergillus versicolor

Penicillium funiculosum

Chaetomium globosum

ASTM C 1338

Prodex Fast Action: One 4 ft x 175 ft (700 sq ft) roll with convenient staple tabs and adhesive on rolls. Prodex Fast Action is identical to Prodex 48 Inch with the exception of having adhesive running 175 feet on one side of roll.
Prodex Total 24 Inch: Set of (2) two 24 inch x 175 ft rolls (700 sq ft total) packaged in one bag. Convenient staple tabs. Nominal width designed for 24 inch on center studs.
.
Prodex Total 16 Inch: Set of (3) three 16 inch x 175 ft rolls (700 sq ft total) packaged in one bag. Convenient staple tabs. Nominal width designed for 16 inch on center studs.
Prodex 72 Inch: One 6 ft x 100 ft (600 sq. ft.) roll with convenient staple tabs.
Prodex Perforated: 4 ft x 175 ft (700 sq. ft.) roll with convenient staple tabs.
Prodex Under Concrete Insulation: 4 ft. x 175 ft. (700 sq. ft.) roll with convenient flange tabs for overlapping. Perfect for driveways and basements. Reflective aluminum foil attached to 5mm (13/64 inch) closed-cell polyethylene foam.
Prodex Garage Door Insulation kit: One - 24 Inch x 87 ft (174 sq. ft.) roll of Prodex Total Insulation + One roll of double sided adhesive tape (1-1/2 Inch x 60 yards) + One roll of reflective tape (2 Inch x 60 yards).
Prodex Assorted Cut Pieces: Approximately 525 to 650 square feet of assorted cut lengths of 4 foot wide (48 Inch) Prodex Total Insulation pieces. The lengths of the pieces typically range from 6 ft to 24 ft.
Prodex Total 10M: One 4 ft x 85.3 roll (342 sq. ft.) 10mm (0.4") - Twice as thick as regular Prodex, Increased R, More longitudinal strength + improved tearing resistance, Reduced condensation
