availability : 295 in stock

Estimated shipping date: By next business day

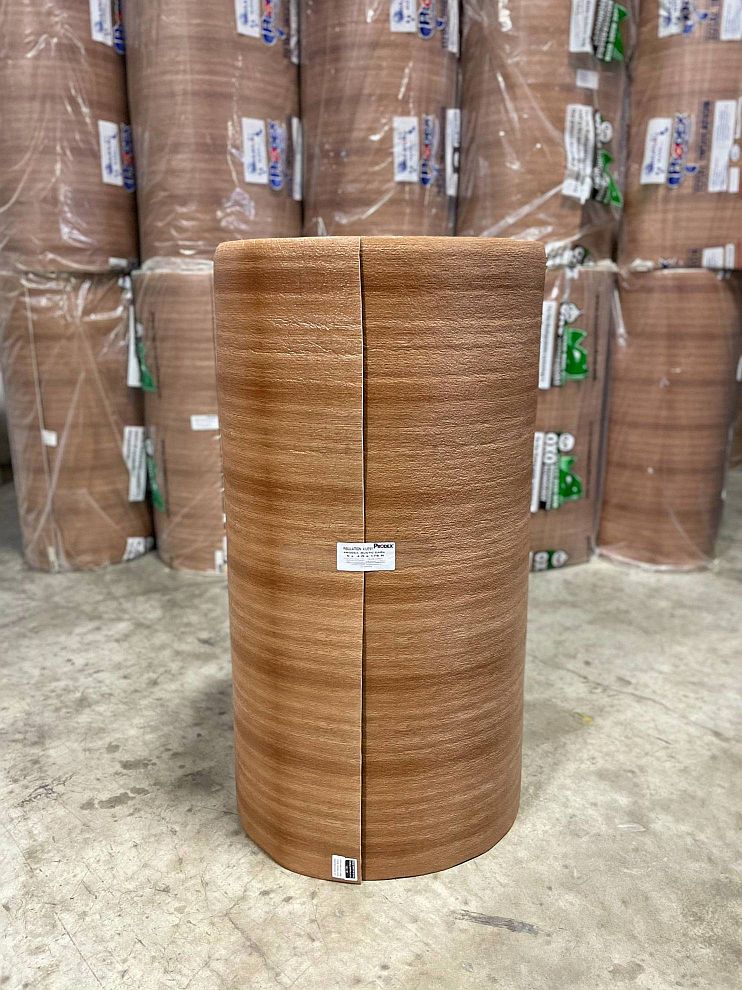

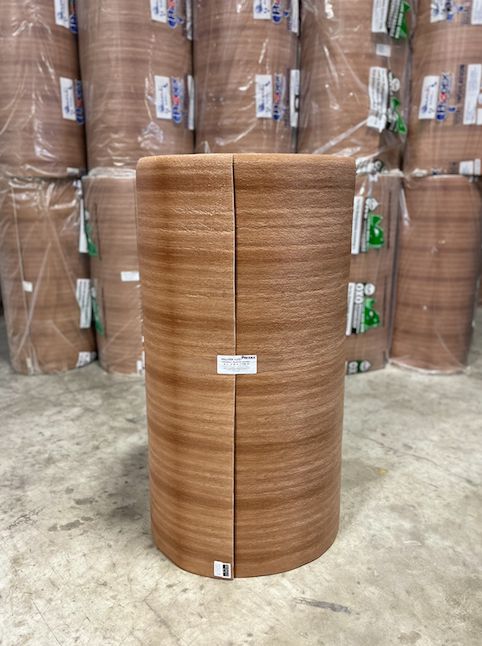

RUSTIC DARK Prodex Total 5M Plus 4 ft x 175 ft (700 sq ft)

$ 399.95 $ 499.95 You save 20.000%

FREE Shipping TODAY on 2 or more rolls


FREE Shipping TODAY on 2 or more rolls HI, AK and Canada excluded - Details




Decorative Insulation - Wood Finish! Insulate while you Decorate! No extra investments necessary in finish materials - Save Money! See "Photos Gallery" tab below.  Don't need this much? Order RUSTIC 4 x 50


R-value 15.0 - Improved Tearing Resistance - Flame Spread 0

Insulation + Radiant barrier + Vapor Barrier + Air Barrier All in one product!

REFLECTIVE REINFORCED FOIL + POLYETHYLENE FOAM.
+ UV RESISTANT RUSTIC FACER.


0.20 inch closed cell polyethylene foam with reflective reinforced foil on one side and plastic rustic finish film on the other side.

Ship dimensions: L: 48" W: 24" H: 24" Lbs: 27


Prodex Difference: R-value unaffected by humidity : Prevents condensation : Prevents 97% of radiant heat transfer : Vapor barrier : Elastic : UV resistance : Does not promote mold or mildew : Does not provide for nesting of rodents, bugs or birds : Seals around nails (no leak) : Keeps its shape over time (doesn't collapse) : Rippled foil surface increases airflow : Member of US Green Building Council - Made with 100% recyclable virgin raw materials : Over 5 billion square feet sold worldwide.


Prodex adds an extra layer of credibly by submitting insulation rolls to the ASTM Rima International verification program. By having a third party verification, Prodex assures its clients that the insulation complies with industry standards, and is suitable for any construction system.


Beware of pitchmen for fiberglass and other mass insulation products. Ask them: "Doesn't the R-value you post come from the air pocket in the fibers? Isn't your testing done in an environment with no moisture? Why don't you show the parameters of your testing? Unlike mass insulation products, we provide the parameters of the testing. Every R-value on website is displayed as a link. Every R-value link goes to the parameters of the testing.


You get more than insulation when buying Prodex Total. You also get an air, radiant, and vapor barrier! Even if you have fiberglass insulation, you should still use Prodex Total to add r-value and keep moisture plus heat out of your fibers.


Understand what you're buying...


Ultimately, it's not our opinion or that of the competition that counts - See:


Video Reviews


Independent Reviews at Site Jabber. Site Jabber is the leading destination for customer reviews of businesses.


BBB report and reviews. For over 100 years, BBB has set the standard for ethical business behavior. We're proud to maintain an "A to A+" rating. We've been accredited since 2004. The BBB rating takes into account a company's size in its relation to complaints.


Insulation4Less is the only location in the USA and Canada where you can buy Prodex Total Insulation. Beware of sellers using Prodex product images, descriptions and test results to market other products.




Click to enlarge

Nominal thickness 5mm (+ or - 0.5mm) 0.2 inch



Click to enlarge

Creases in foil creates more airflow to enhance performance

Rustic Dark

Insulation Layers

Reinforced reflective foil

Closed-cell polyethylene foam

Wood Finish Facer

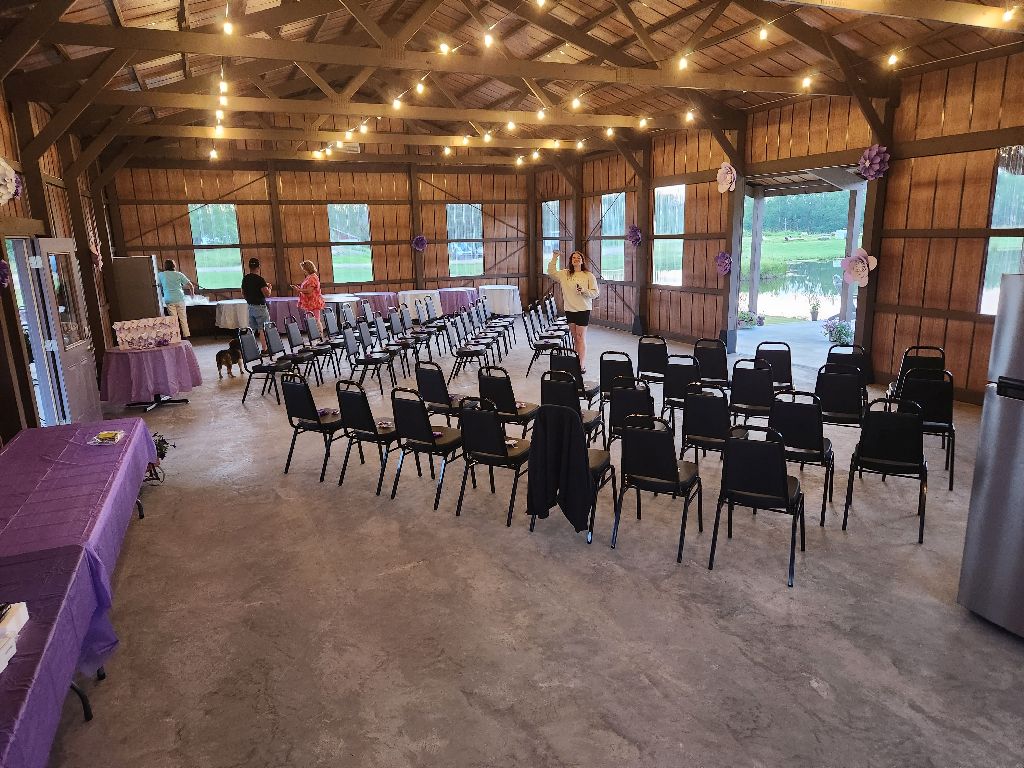

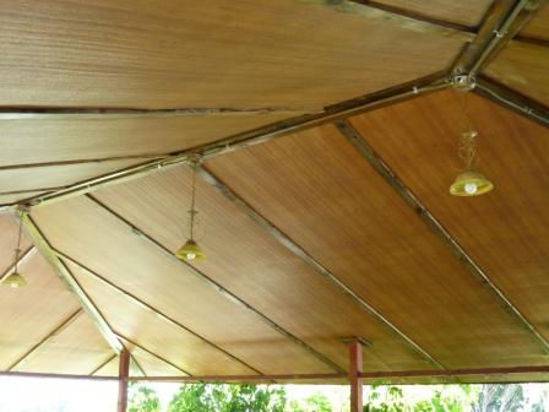

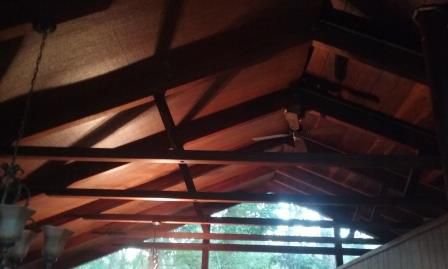

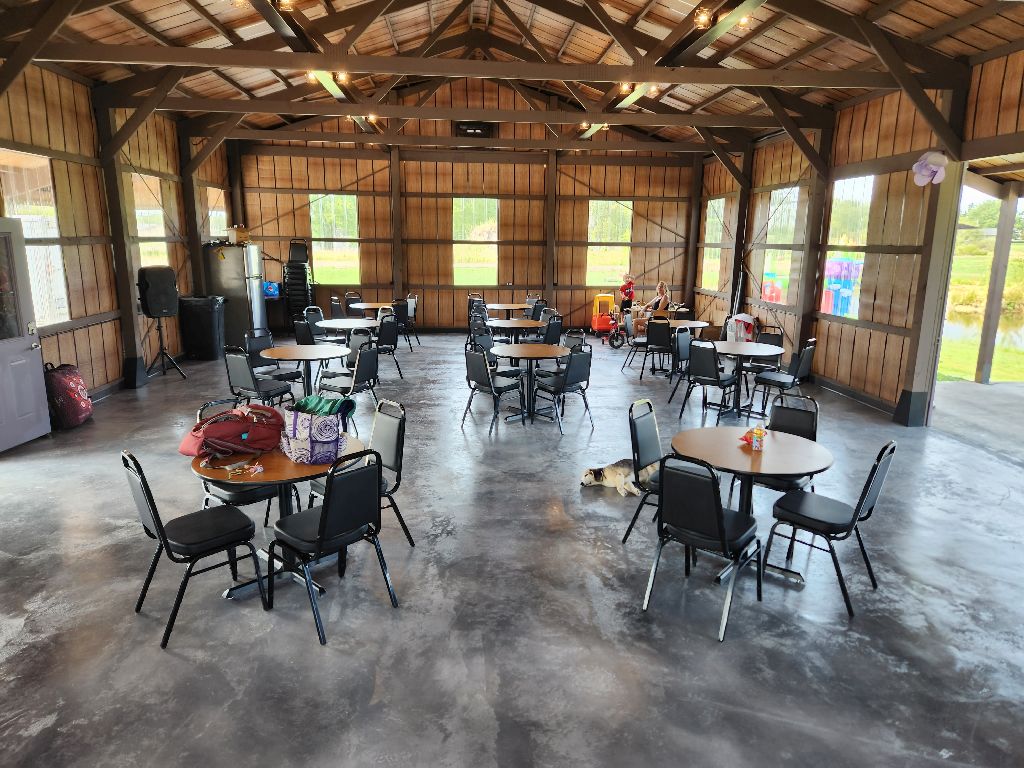

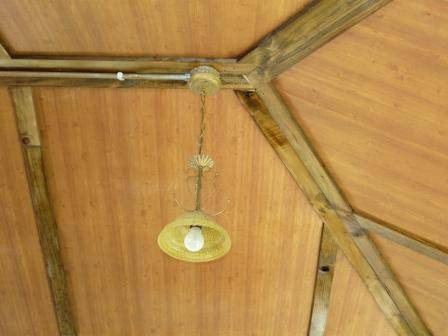

Prodex Rustic Dark Insulation: Insulate while you Decorate! This unique product Saves you money by combining the benefits of insulation with a vapor and a radiant barrier while also serving as your wood finish!!!!! That means you'll have a cool, dry structure in the summer and a warm, dry structure in the winter and not need to spend money on interior finish!! It is used as a stand-alone or supplemental insulation. Applications include pole barns, metal buildings, ceilings, garages and basements and walls. Wood finish facer on one side with reflective foil on one opposite side of 5mm (0.2 inch) closed-cell polyethylene foam center. Questions? Click FAQ

Rustic Prodex Total 5M Plus

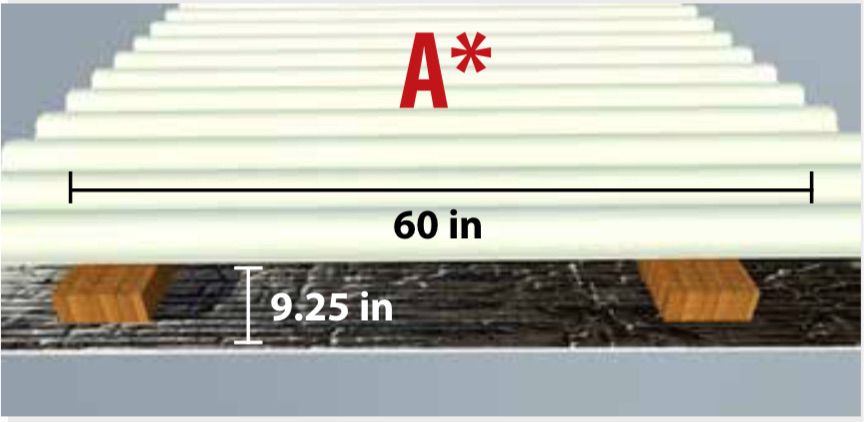

R-value 15.0 (*A: One layer, heat flow down)

Technical Brochure

How R-values are measured

CharacteristicsValueRegulation
Nominal Thickness0.20" |  5 mm
Flame Spread Index0ASTM E 84-10
Smoke Developed Index10ASTM E 84-10
Fungi ResistanceNo growthASTM C 1338
Cell StructureClosed
Water Vapor Permeance 0.09 PermsASTM E 9
Temperature and Humidity Resistance: No corrosion, no delamination, no loss of metalization - ASTM C-1258-08

Approval questions should be posed to your local code official. Questions?

Prodex Fast Action: One 4 ft x 175 ft (700 sq ft) roll with convenient staple tabs and adhesive on rolls. Prodex Fast Action is identical to Prodex 48 Inch with the exception of having adhesive running 175 feet on one side of roll.
Prodex Total 24 Inch: Set of (2) two 24 inch x 175 ft rolls (700 sq ft total) packaged in one bag. Convenient staple tabs. Nominal width designed for 24 inch on center studs.
.
Prodex Total 16 Inch: Set of (3) three 16 inch x 175 ft rolls (700 sq ft total) packaged in one bag. Convenient staple tabs. Nominal width designed for 16 inch on center studs.
Prodex 72 Inch: One 6 ft x 100 ft (600 sq. ft.) roll with convenient staple tabs.
Prodex Perforated: 4 ft x 175 ft (700 sq. ft.) roll with convenient staple tabs.
Prodex Under Concrete Insulation: 4 ft. x 175 ft. (700 sq. ft.) roll with convenient flange tabs for overlapping. Perfect for driveways and basements. Reflective aluminum foil attached to 5mm (13/64 inch) closed-cell polyethylene foam.
Prodex Garage Door Insulation kit: One - 24 Inch x 87 ft (174 sq. ft.) roll of Prodex Total Insulation + One roll of double sided adhesive tape (1-1/2 Inch x 60 yards) + One roll of reflective tape (2 Inch x 60 yards).
Prodex Assorted Cut Pieces: Approximately 525 to 650 square feet of assorted cut lengths of 4 foot wide (48 Inch) Prodex Total Insulation pieces. The lengths of the pieces typically range from 6 ft to 24 ft.
Prodex Total 10M: One 4 ft x 85.3 roll (342 sq. ft.) 10mm (0.4") - Twice as thick as regular Prodex, Increased R, More longitudinal strength + improved tearing resistance, Reduced condensation
