0.20" closed cell polyethylene foam with reflective reinforced foil on one side and UV resistant black facer on the other side.
Higher R, Stronger and Safer Insulation
R-value 15 - Improved Tearing Resistance - Flame Spread 0
Insulation + Radiant barrier + Vapor Barrier + Air Barrier
All in one product!
One solution for Heat, Condensation, Cold and Airflow.
Prodex Difference: R-value unaffected by humidity : Prevents condensation : Prevents 97% of radiant heat transfer : Vapor barrier : Elastic : UV resistance : Does not promote mold or mildew : Does not provide for nesting of rodents, bugs or birds : Seals around nails (no leak) : Keeps its shape over time (doesn't collapse) : Rippled foil surface increases airflow : Member of US Green Building Council - Made with 100% recyclable virgin raw materials : Over 5 billion square feet sold worldwide.
Technical Information
|
|
|
|
|
|
|
|
Approval questions should be posed to your local code official. Questions? |
Applications (Uses)
BLACK Prodex Total insulation is a high-performance reflective insulation solution suitable for a wide variety of residential, commercial, and agricultural uses. Its unique composition of reflective foil, polyethylene foam, and vapor barrier properties make it an ideal choice for combating heat, cold, moisture, and radiant energy. Here are the most common applications:
Metal Building Insulation
Perfect for warehouses, workshops, airplane hangars, and other metal structures.
Helps reduce heat gain in summer and heat loss in winter.
Controls condensation and prevents corrosion on metal surfaces.
Improves indoor comfort and lowers energy costs.
Pole Barn Insulation
Excellent for barns, riding arenas, equipment sheds, and agricultural storage buildings.
Keeps animals more comfortable by moderating internal temperatures.
Minimizes condensation, protecting stored equipment and feed from moisture damage.
Easy to install between framing or over purlins.
House Insulation
Ideal for roofs, ceilings, walls, attic spaces, crawl spaces, basements, and garages.
Enhances energy efficiency by reflecting radiant heat and providing a vapor barrier.
Great for DIY projects due to its lightweight, flexible design.
More Applications
Garage Door Insulation – Reduce heat transfer and noise while boosting R-value.
RV and Camper Insulation – Keep vehicles cooler in summer and warmer in winter.
Shipping Container Insulation – Prevent condensation and extreme temperature swings in converted containers.
Dog Kennels and Animal Shelters – Maintain a safer, more comfortable environment for pets and livestock.
Ductwork Wrap – Insulate HVAC ducts to improve efficiency and prevent sweating.
Cold Storage Buildings – Maintain consistent temperature control with reduced energy demand.

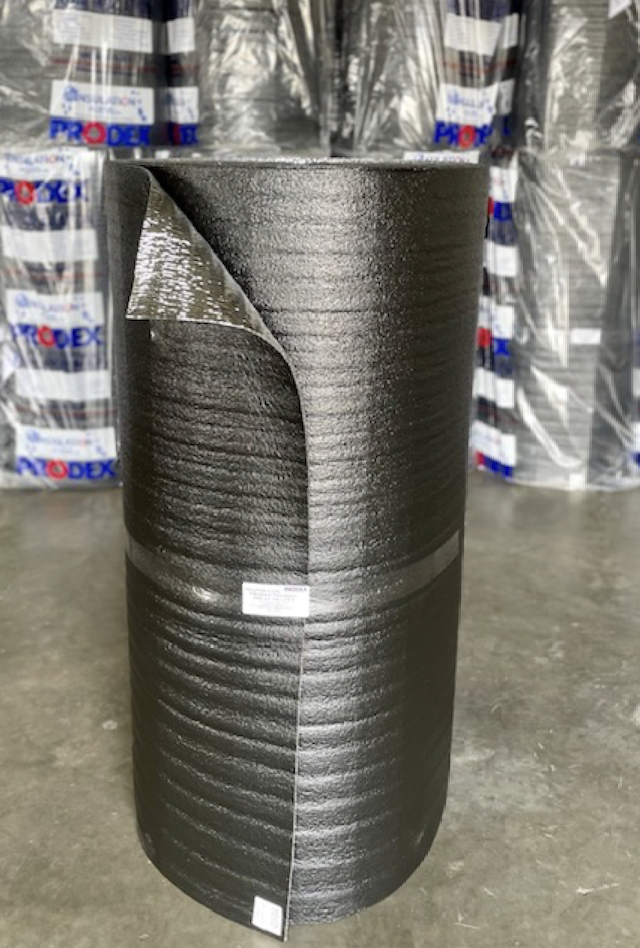

Photos of Prodex Total Insulation
Other Prodex Total Products to Consider
Prodex Fast Action: One 4 ft x 175 ft (700 sq ft) roll with convenient staple tabs and adhesive on rolls. Prodex Fast Action is identical to Prodex 48 Inch with the exception of having adhesive running 175 feet on one side of roll.
Prodex Total 24 Inch: Set of (2) two 24 inch x 175 ft rolls (700 sq ft total) packaged in one bag. Convenient staple tabs. Nominal width designed for 24 inch on center studs.
.

Prodex Total 16 Inch: Set of (3) three 16 inch x 175 ft rolls (700 sq ft total) packaged in one bag. Convenient staple tabs. Nominal width designed for 16 inch on center studs.
Prodex 72 Inch: One 6 ft x 100 ft (600 sq. ft.) roll with convenient staple tabs.

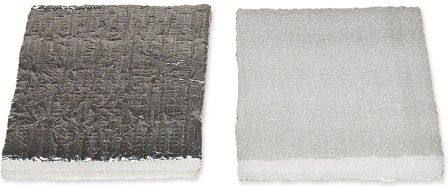

Prodex Under Concrete Insulation: 4 ft. x 175 ft. (700 sq. ft.) roll with convenient flange tabs for overlapping. Perfect for driveways and basements. Reflective aluminum foil attached to 5mm (13/64 inch) closed-cell polyethylene foam.
Prodex Garage Door Insulation kit: One - 24 Inch x 87 ft (174 sq. ft.) roll of Prodex Total Insulation + One roll of double sided adhesive tape (1-1/2 Inch x 60 yards) + One roll of reflective tape (2 Inch x 60 yards).
Prodex Assorted Cut Pieces: Approximately 525 to 650 square feet of assorted cut lengths of 4 foot wide (48 Inch) Prodex Total Insulation pieces. The lengths of the pieces typically range from 6 ft to 24 ft.
Prodex Total 10M: One 4 ft x 85.3 roll (342 sq. ft.) 10mm (0.4") - Twice as thick as regular Prodex, Increased R, More longitudinal strength + improved tearing resistance, Reduced condensation
